Portable Line Boring Sets

For the Best Results

SIMPLE, AFFORDABLE, EFFICIENT

Made in Chicago, USA, our Line Boring Sets include the tools needed to rebore most holes starting from 1” up to 8”. The boring bars are made from 1045 induction hardened and chrome plated precision ground and polished steel. The bars have square tool ports broached every 2.5” or 3” so the operator can get an exact measurement (within .001″) without having to remove the boring bar from the bore.


(Use Starrett 823 inside micrometer or similar)

Ideal for small businesses

As a small family business, we understand the need for reliable, cost-efficient equipment. Rather than spending money on replacing heavy equipment or paying someone else to fix it, fix it yourself with our portable Line Boring Sets!

Use it to repair

Gearbox parts
+ housing

Farming
equipment

Valves

Clevis
plate bores

Driveshaft
hosing

Elevator Sheave
housings + motors

Construction equipment
maintenance / bucket
repair

Various applications in
shipbuilding

See the Line Boring Machine in Action

Set A Series

Portable Line Boring Set A series with one bar and two cones attached

Line Boring Set A1.5

Bar Diameter 1.5" x 40"
Boring Diameter 1.75" - 5"
Power Feed Electric / Max. Stroke - 11"

Line Boring Set includes:

  • 1 boring bar
  • 2 centering cones with 2 collets and 1 washer
  • 2 bearing holders
  • 2  bearings
  • 8  L shape legs
  • Mounting hardware
  • Clamping collet
  • 4 carbide toolbits

Power Feed Kit includes:

  • Power Feed with drill
  • Bearing plate with 4 adjustable legs
  • 1 bearing
  • Adapter holder for .75” shaft shank
  • Bearing holder – adjustable, for centering

Shipped in an aluminum box

Price without Power Feed $3,000
Price with Power Feed $6,900

Line Boring Set A1.75

Bar Diameter 1.75" x 40"
Boring Diameter 2" - 6"
Power Feed Electric / Max. Stroke - 11"

Line Boring Set includes:

  • 1 boring bar
  • 2 centering cones with 2 collets and 1 washer
  • 2 bearing holders
  • 2  bearings
  • 8  L shape legs
  • Mounting hardware
  • Clamping collet
  • 4 carbide toolbits

Power Feed Kit includes:

  • Power Feed with drill
  • Bearing plate with 4 adjustable legs
  • 1 bearing
  • Adapter holder for .75” shaft shank
  • Bearing holder – adjustable, for centering

Shipped in an aluminum box

Price without Power Feed $3,000
Price with Power Feed $6,900

Set B Series

Portable Line Boring Set B series with two bars and two cones attached

Line Boring Set B1.5

Bar 1 Diameter 1.5" x 40"
Bar 2 Diameter 1.5" x 72"/73"
Boring Diameter 1.5" - 6.5"
Power Feed Electric / Max. Stroke - 11"

Line Boring Set includes:

  • 2 boring bars
  • 2 centering cones with 2 collets and 1 washer
  • 3 bearing holders
  • 3  bearings
  • 12 L shape legs
  • Mounting hardware
  • Clamping collet
  • 4 carbide toolbits

Power Feed Kit includes:

  • Power Feed with drill
  • Bearing plate with 4 adjustable legs
  • 1 bearing
  • Bearing holder – adjustable, for centering
  • Adapter holder for .75” shaft shank

Shipped in an aluminum box.

Price without Power Feed $4,900
Price with Power Feed $8,700

Line Boring Set B1.75

Bar 1 Diameter 1.75" x 40"
Bar 2 Diameter 1.75" x 72"/73"
Boring Diameter 2" - 6.5"
Power Feed Electric / Max. Stroke - 11"

Line Boring Set includes:

  • 2 boring bars
  • 2 centering cones with 2 collets and 1 washer
  • 3 bearing holders
  • 3  bearings
  • 12 L shape legs
  • Mounting hardware
  • Clamping collet
  • 4 carbide toolbits

Power Feed Kit includes:

  • Power Feed with drill
  • Bearing plate with 4 adjustable legs
  • 1 bearing
  • Bearing holder – adjustable, for centering
  • Adapter holder for .75” shaft shank

Shipped in an aluminum box.

Price without Power Feed $4,900
Price with Power Feed $8,700

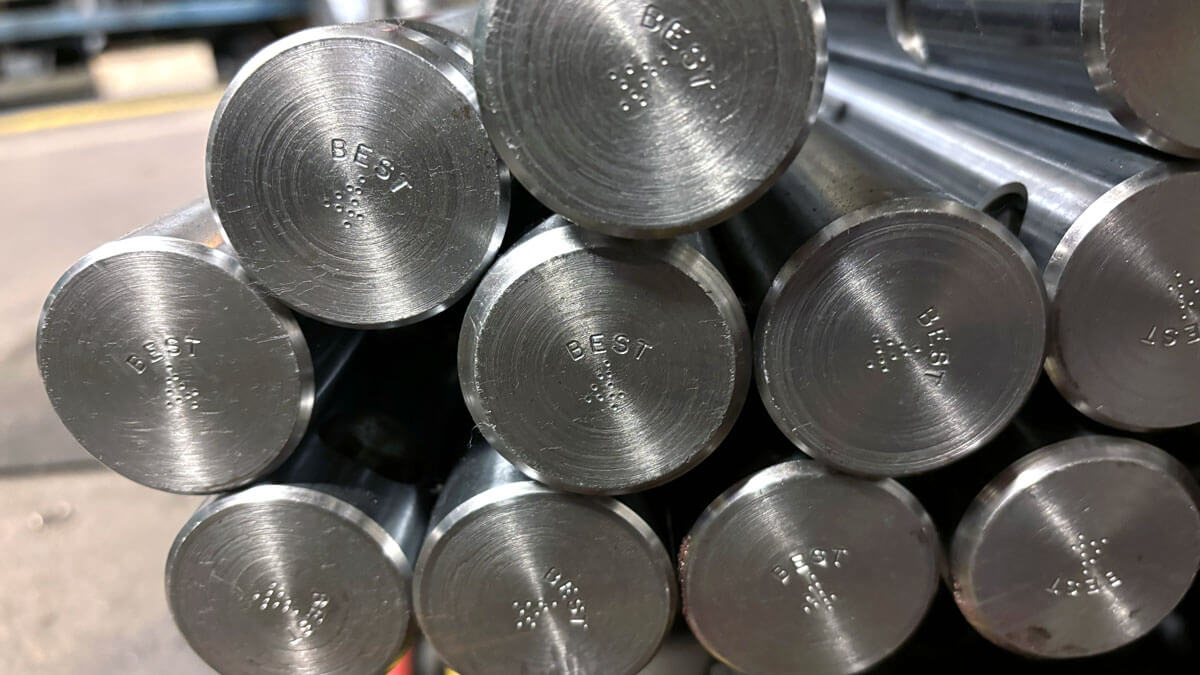

Bars

Made from induction hardened, chrome plated precision ground and polished steel; our bars are included in our Line Boring Sets and have square tool ports broached every 2.5” or 3” so that you can measure without pulling the shaft out. Use a Starrett 823 inside micrometer.

Boring bars used in Line Boring Sets A and B
Bar Length Sq Hole Sq Broached Tool Ports Shank Diameter Distance b/w Holes Price*
Bar 0.875 36" 0.25" 11 0.5" 3" $700
Bar 1.00 36" 0.312" 11 0.75" 3" $700
Bar 1.25 42" 0.312" 11 0.75" 3" $800
Bar 1.25 40" 0.375" 13 0.5" 2.5" $1,000
Bar 1.25 48" 0.375" 14 0.75" 3" $1,200
Bar 1.5 21" 0.5" 5 0.75" 2.5" $600
Bar 1.5 40" 0.5" 13 0.75" 2.5" $1,100
Bar 1.5 48" 0.5" 14 0.75" 3" $1,280
Bar 1.5 54" 0.5" 19 0.75" 2.5" $1,500
Bar 1.5 72" 0.5" 25 0.75" 2.5" $1,880
Bar 1.5 73" 0.5" 21 0.75" 3" $1,700
Bar 1.75 22" 0.5" 5 0.75" 2.5" $700
Bar 1.75 40" 0.5" 13 0.75" 2.5" $1,200
Bar 1.75 48" 0.5" 14 0.75" 3" $1,380
Bar 1.75 72" 0.5" 25 0.75" 2.5" $1,980
Bar 1.75 73" 0.5" 21 0.75" 3" $1,800
Bar 1.75 100" 0.5" 21 0.75" 3" $3,000

Tilt your phone horizontally for all bar options.

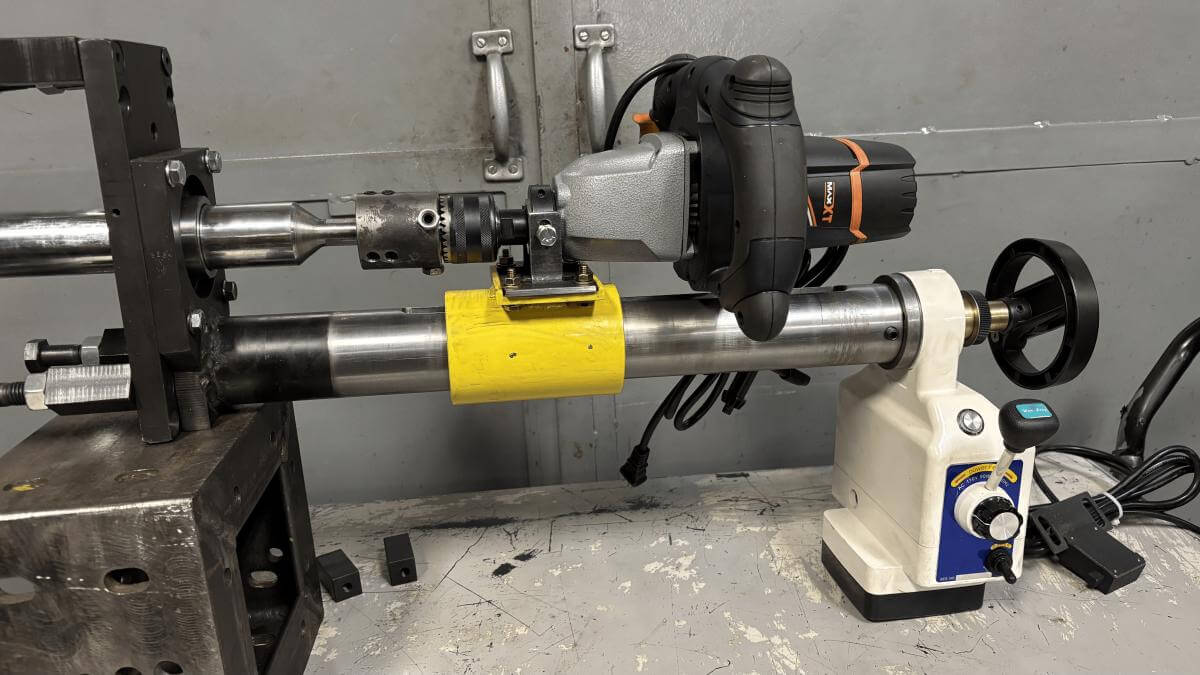

Power Feed attached to a Line Boring Set

Power Feed

Electric / Max. Stroke – 11 in.

Available for purchase separate from our Line Boring Sets for $4,900.

If more power is needed, the Power Feed can be updated using a:

  • Milwaukee Model # 4262-1 Mag Drill motor,
  • Mixer motor,
  • Eibenstock ETE 32/2.3 R R/L,
  • or any motor you have.

Custom attaching plates are available for purchase, call (224) 435 – 6999.

A machining workshop bench with a bucket of tools on it.

Need something
custom made?

We offer custom repairs, part production, and more!
